240x320 ESP32 Display Module 2.4 Inch ESP32 Development Board WiFi Bluetooth Smart Screen

Supply Ability : Up to 5,000 pcs/day

Outline : 118.5×84.7×5.2 mm

Signal Interface : LVDS

Lumens Degrees : 1000cd/m²

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Payment Terms : T/T

Display Mode : Normally White, Transmissive

View Direction : free/all

Viewing Area : 116.2mm×87.1mm

Color Gamut : 72 % of NTSC(Typ.)

Place of Origin : GuangDong, China

Price : $12.99-14.99/Piece

Drive System : a-Si TFT active matrix

Delivery Time : 30 Working days

Name : ESP32 Display Module

Controller Ic : SSD1316

Storage Temperature : -30℃~80℃

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Response Time : 6ms

Display Color : Monochrome Black and White

Brand Name : XXT

Operating_Temperature : -20°C to 70°C

Model Number : YBR024EGE-Q1（E32R24P）

MOQ : 500

Contact Now

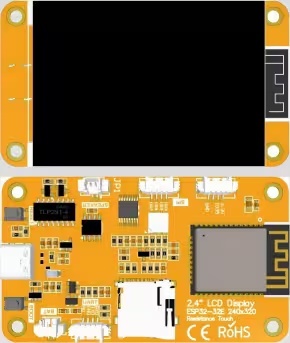

ESP32 2.4 Inch IPS TFT LCD Display Development Board 240×320 WiFi Bluetooth Smart Screen

Product Overview

The YBR024EGE-Q1 (E32R24P) is a 2.4-inch IPS TFT display module designed for IoT devices, HMI systems, educational projects, and rapid prototyping applications. Powered by the ESP32-WROOM-32E dual-core microcontroller, this module integrates WiFi and Bluetooth connectivity with a bright 240×320 resolution IPS display.

This all-in-one development board features resistive touch capability, RGB status indicators, and multiple interface options, enabling rich interaction and peripheral integration. It supports LVGL graphics library and includes comprehensive example programs for quick development and testing.

The module also supports audio output, external lithium battery operation with charging management, MicroSD card expansion, and general-purpose I/O connections, making it ideal for embedded systems and smart device applications.

Key Features

ESP32-WROOM-32E microcontroller with dual-core Xtensa LX6 processor, up to 240MHz
2.4-inch IPS TFT display with 240×320 resolution, 220 cd/m² typical brightness, and full viewing angle
Resistive touch interface for interactive HMI applications
WiFi & Bluetooth V4.2 connectivity for wireless communication
Rich peripheral interfaces: SPI, UART, RGB status LED, MicroTF card slot
External battery support with charging management
TYPE-C interface for programming and power supply
ST7789 display driver IC for precise visual control
Supports LVGL graphics library and preloaded demo programs
safety-grade testing standards for long-term stability
Ideal for: IoT devices, industrial control panels, educational kits, embedded prototypes

Technical Specifications

Parameter	Specification
Module	ESP32-WROOM-32E
CPU	ESP32-D0WD-V3, dual-core 32-bit LX6
Frequency	Up to 240 MHz
Memory	448KB ROM + 520KB SRAM + 16KB RTC SRAM + 4MB external QSPI Flash
WiFi	2.4 GHz 802.11 b/g/n
Bluetooth	V4.2 BR/EDR & BLE
Operating Voltage	3.0 ~ 3.6 V
Operating Temp.	-40 ~ +85°C
Panel Size	2.4 Inch IPS TFT
Resolution	240 × 320 pixels
Active Area	36.2 × 49 mm
Colors	Max 262K (RGB666), commonly 56K (RGB565)
Driver IC	ST7789
Display Interface	4-Line SPI (connected to ESP32)
Viewing Angle	Full angle (ALL’CLOCK)
Brightness	220 cd/m²
Module Dimensions	74.4 × 42.9 mm
Storage Temperature	-30 ~ +70°C

Applications

IoT devices and smart home terminals
Industrial control panels and HMI interfaces
Educational and prototyping kits for embedded systems
Smart display modules for portable instruments
Audio-enabled embedded applications

Advantages

All-in-one solution: Combines display, touch, connectivity, and peripheral interfaces in a compact module
Rapid development: Preloaded example programs and LVGL support enable quick prototyping
Wireless ready: Integrated WiFi and Bluetooth modules for IoT applications
Expandable: Supports MicroSD cards, external batteries, and multiple I/O connections
High reliability: safety-grade testing ensures stable operation across temperature ranges

Package Includes

1 × YBR024EGE-Q1 2.4-Inch ESP32 Development Board
Documentation and example programs

Ordering & Shipping

MOQ: 1 piece
Delivery Time: Typically 7 working days after payment confirmation
Payment Methods: T/T (Telegraphic Transfer)
Shipping Methods: DHL, China Post

This 2.4-inch IPS ESP32 development board is a compact and versatile solution for developers creating IoT devices, industrial controllers, or educational prototyping projects, offering integrated wireless communication, touch functionality, and flexible expansion options.
